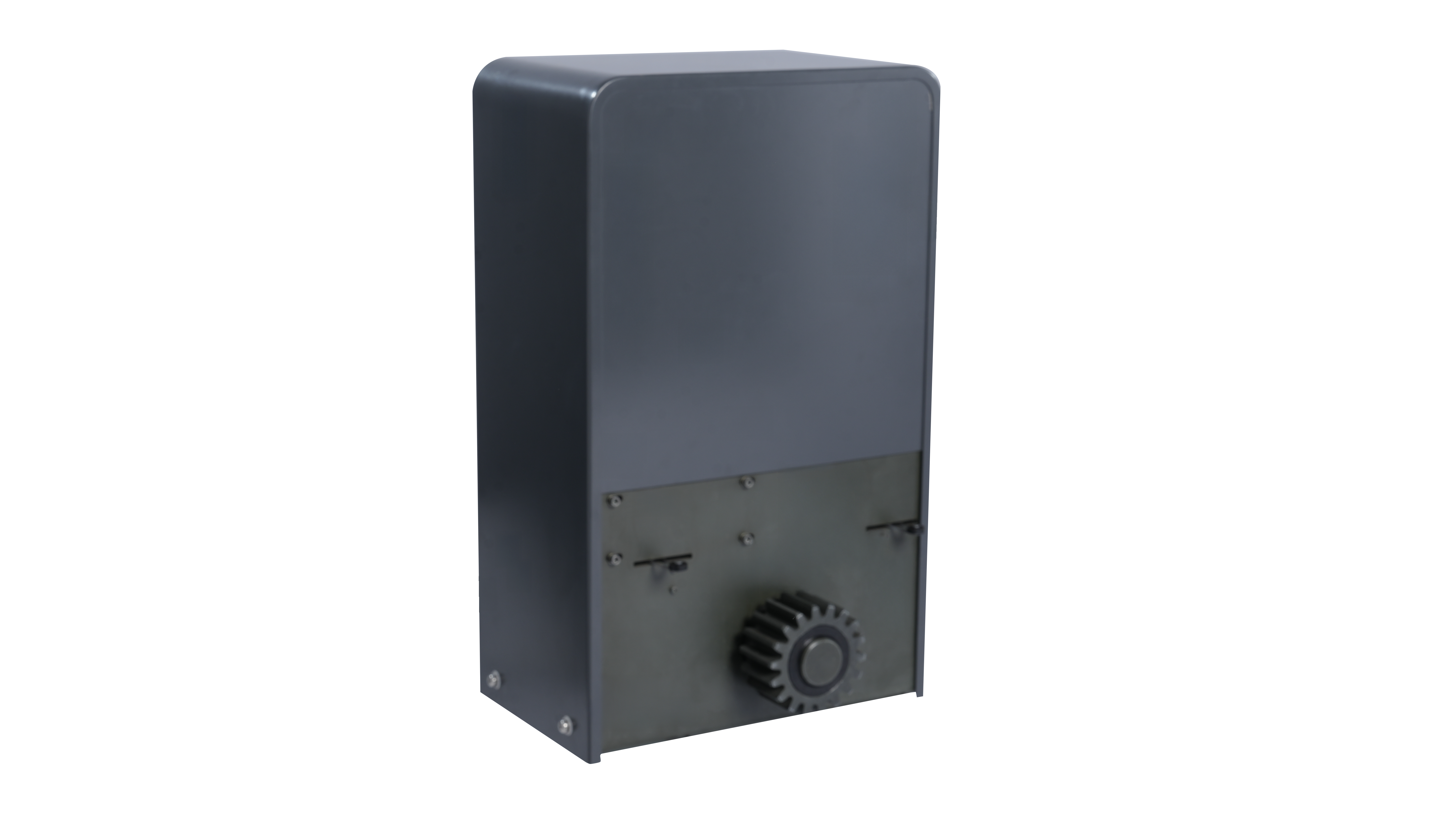

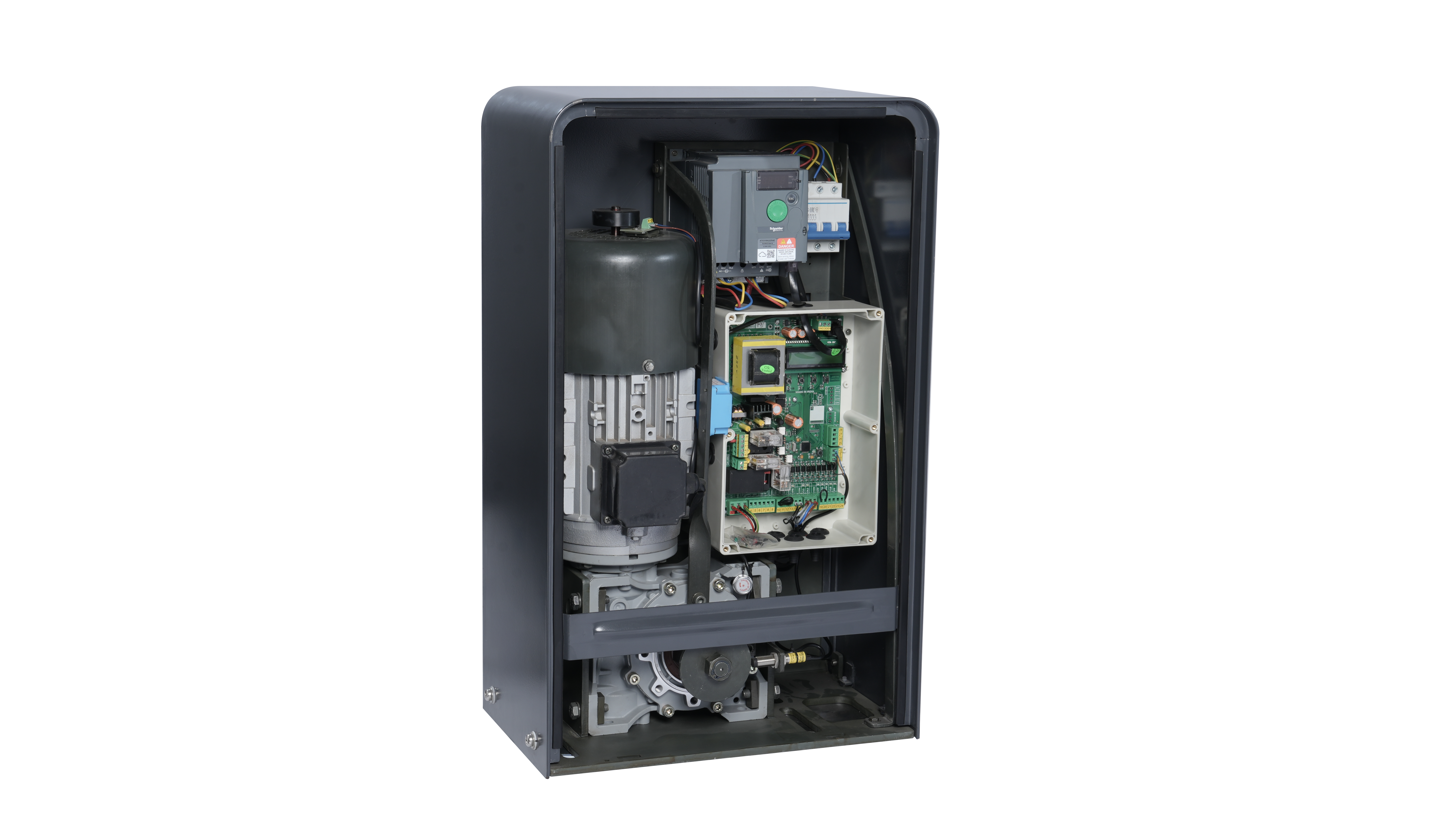

J30Q
Heavy-duty sliding gate operator built for larger commercial gates that demand higher torque and sustained performance.
Technical Specifications
| Specifications | |
|---|---|
| Type | Electromechanical Actuator |
| Capacity | up to 3000kg |
| Opening / Closing Speed | 0.17 m/s (10.5 m/min) |
| Power Supply | 415VAC ~ / 50Hz |
| Duty Cycle | 100% |
| Max Thrust | 3000N |
| Operating Temperature | -20°C to +55°C |
| Motor Thermal Protection | 100°C |
| Emergency Release | Yes |
| Protection Rating | IP45 |
| Limit Switches | Mechanical |
| Dimensions (mm) | |
|---|---|
| Length (L) | 420 mm |
| Height (H) | 258 mm |
| Width (W) | 690 mm |
