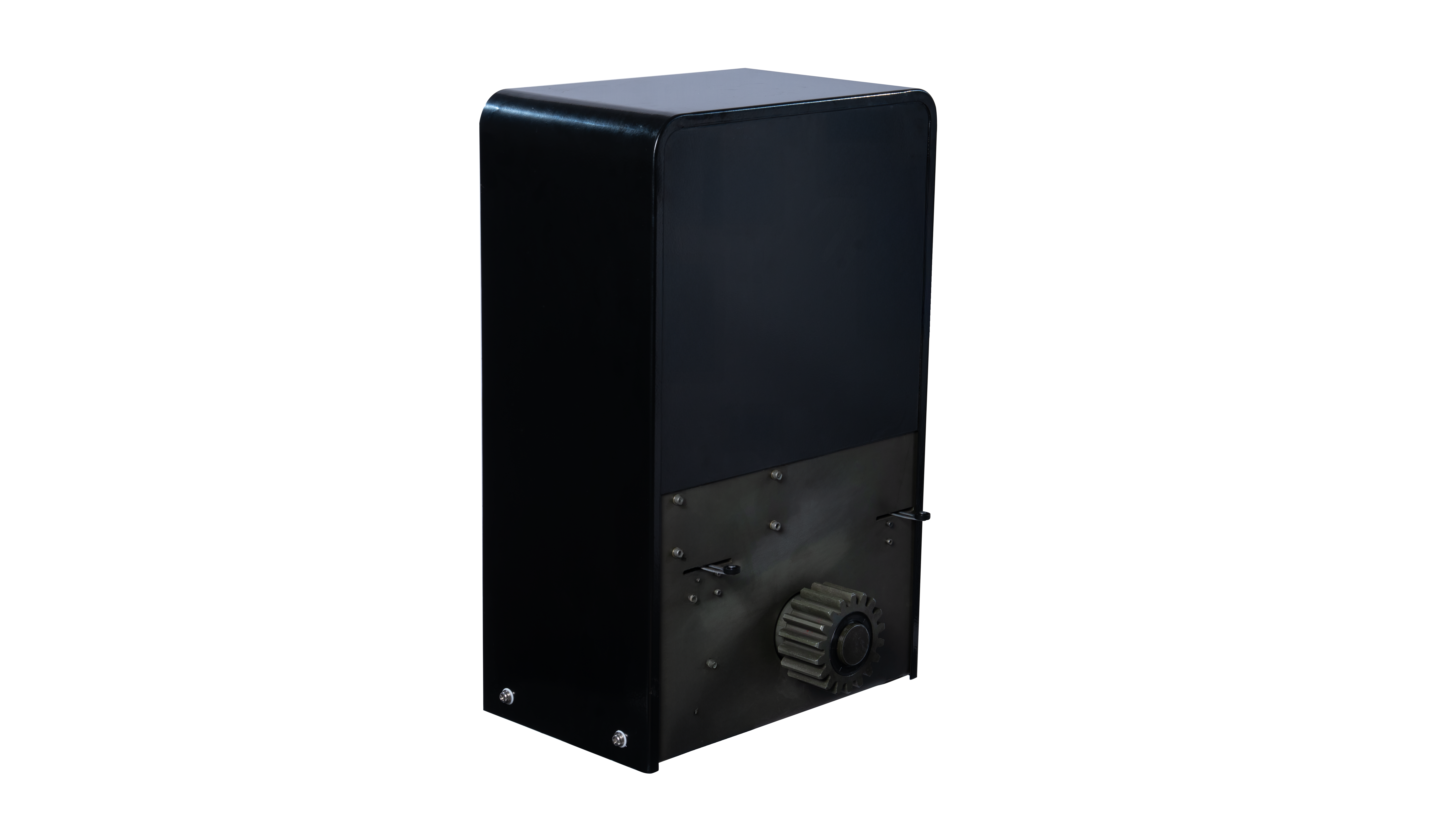

J40Q
High-capacity sliding gate operator for heavy commercial and light industrial gates operating under continuous use.
Technical Specifications
| Specifications | |
|---|---|
| Type | Electromechanical Actuator |
| Capacity | up to 4000kg |
| Opening / Closing Speed | 0.17 m/s (10.5 m/min) |
| Power Supply | 415VAC ~ / 50Hz |
| Duty Cycle | 100% |
| Max Thrust | 4000N |
| Operating Temperature | -20°C to +55°C |
| Motor Thermal Protection | 100°C |
| Emergency Release | Yes |
| Protection Rating | IP45 |
| Limit Switches | Mechanical |
| Dimensions (mm) | |
|---|---|
| Length (L) | 460 mm |
| Height (H) | 449 mm |
| Width (W) | 685 mm |
Other Products
J10Q
Entry-level model in the J-Series sliding gate operator range, built for light-duty residential gates with smooth, dependable automated movement.
J15Q
Compact sliding gate operator suited for light-to-medium residential and small commercial gates requiring frequent daily use.
J20Q
Mid-range sliding gate operator engineered for medium-duty residential and commercial gates with consistent operating cycles.
J25Q
Robust sliding gate operator designed for medium-to-heavy gates across commercial entrances and gated communities.
J30Q
Heavy-duty sliding gate operator built for larger commercial gates that demand higher torque and sustained performance.
J60Q
Flagship model in the J-Series, engineered for heavy industrial sliding gates requiring maximum drive capacity and reliability.
Interested in
J40Q?
Tell us your requirements and our team will send a tailored quote within 24 hours.
