Aluminium Series LIMIT 2
- Reinforced aluminium construction supports long-term operational performance.
- Precision-linked sections ensure stable expansion and retraction.
- Compact head unit enables controlled and efficient automated access.
Aluminium Series LIMIT 2 - Images

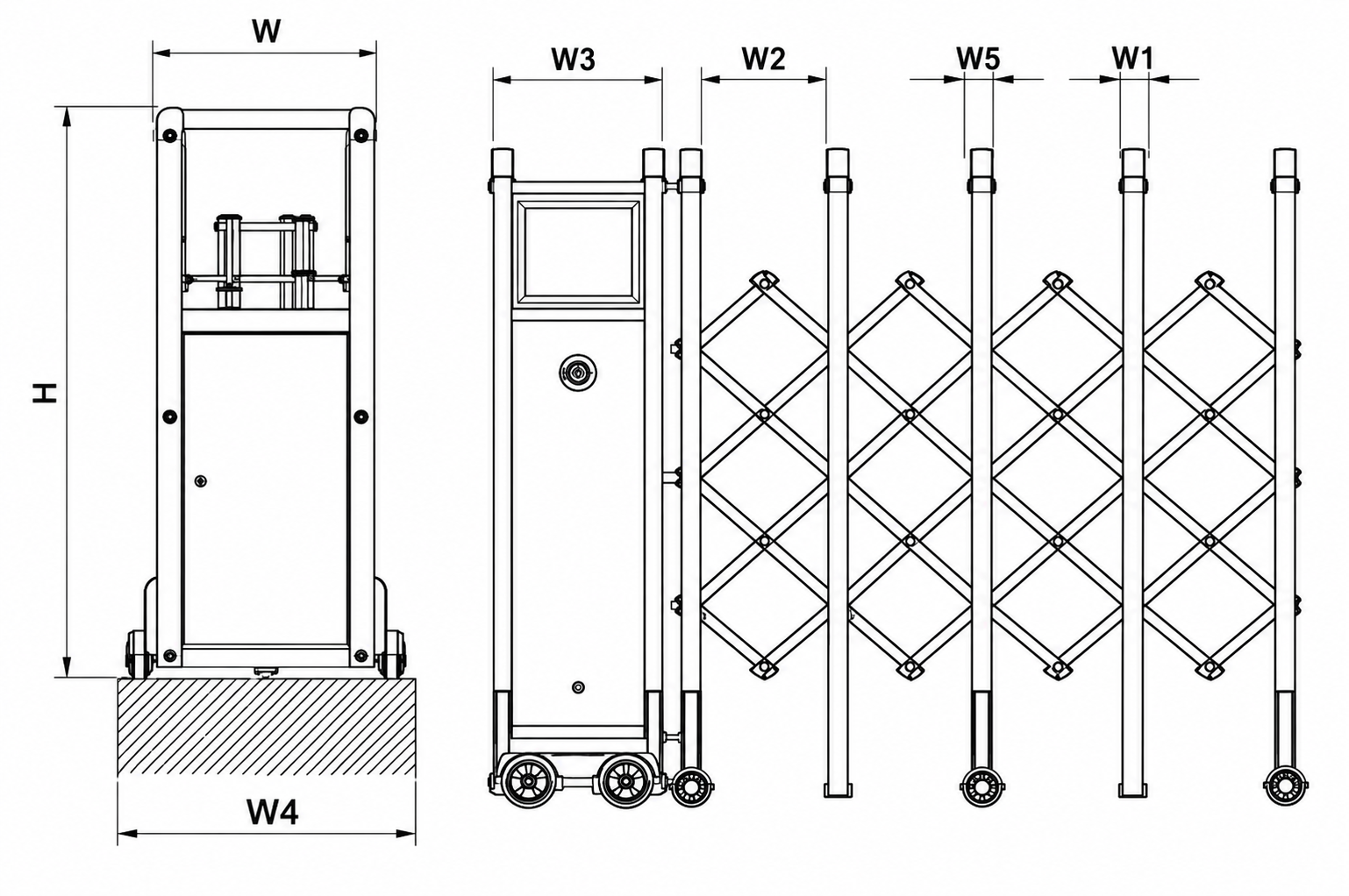

Technical Specifications
| Gate Frame | |
|---|---|
| H | 1.33M - 1.8M |
| W | 475mm |
| W1 | 055mm |
| W2 | 265mm |
| W3 | 372mm |
| W4 | 035mm |
| W5 | 035mm |
| Drive Unit | |
|---|---|
| Voltage | 220V ± 10% |
| Current | 2.5A |
| Power | 300W |
| Frequency | 50–60Hz |
| Insulation | E Class |
| Operating Temperature | -40°C / +80°C |
| Speed | 15 m/min |
