Aluminium Series LIMIT 7
- Robust aluminium structure delivers enhanced strength and long-term durability.
- Closely spaced expandable sections provide improved perimeter security.
- Integrated drive technology ensures smooth and consistent automated operation.
Aluminium Series LIMIT 7 - Images

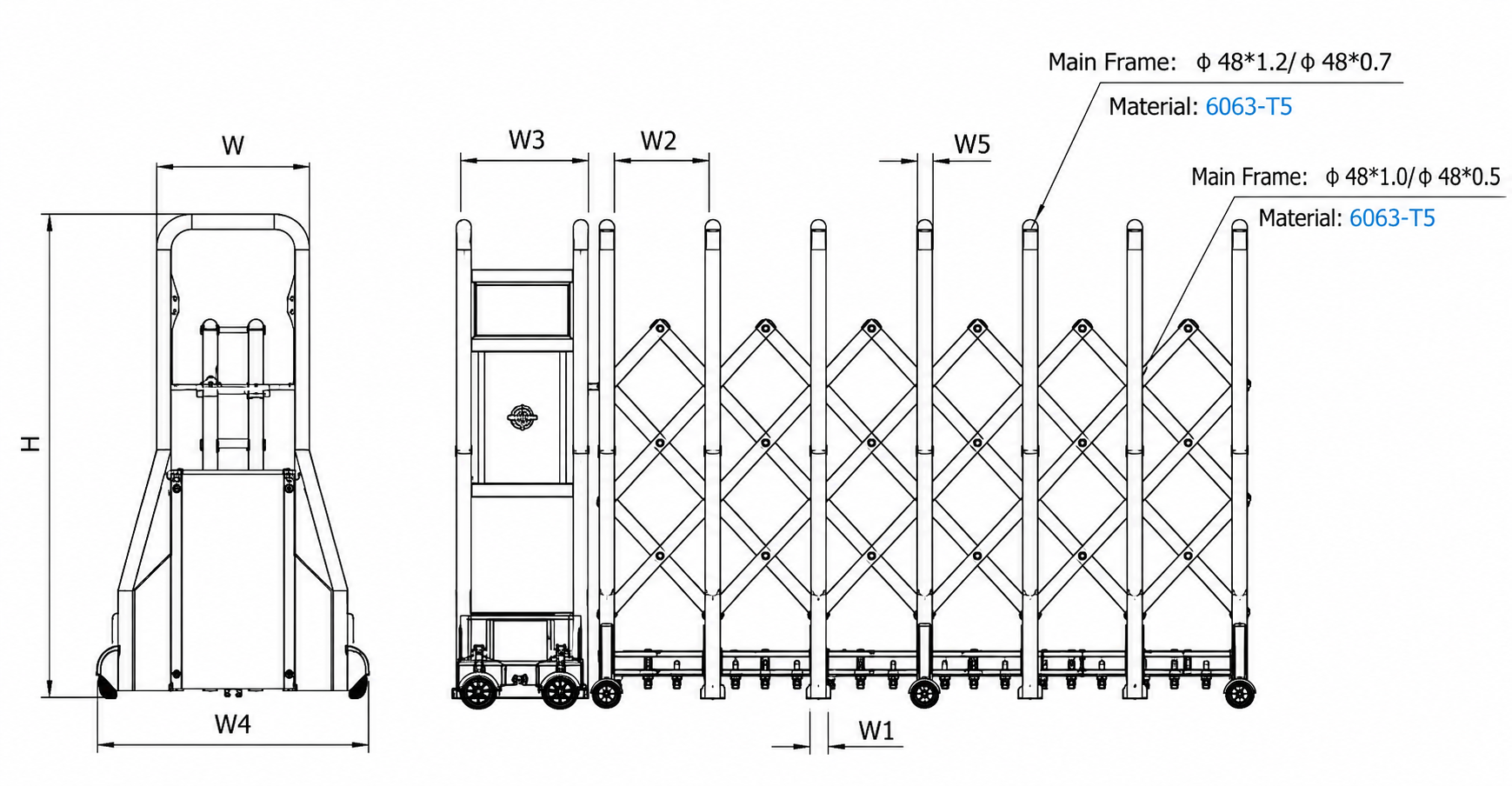

Technical Specifications
| Gate Frame | |
|---|---|
| H | 1.33M - 1.8M |
| W | 513mm |
| W1 | 068mm |
| W2 | 302mm |
| W3 | 302mm |
| W4 | 900mm |
| W5 | 048mm |
| Drive Unit | |
|---|---|
| Voltage | 220V ± 10% |
| Current | 2.5A |
| Power | 300W |
| Frequency | 50–60Hz |
| Insulation | E Class |
| Operating Temperature | -25°C / +70°C |
| Speed | 18 m/min |
Other Products
Aluminium Series LIMIT 1
High-strength aluminium frame ensures durable and reliable operation. Expandable structure provides efficient access control with a compact footprint. Integrated motor system enables smooth and consistent gate movement.
Aluminium Series LIMIT 2
Reinforced aluminium construction supports long-term operational performance. Precision-linked sections ensure stable expansion and retraction. Compact head unit enables controlled and efficient automated access.
Aluminium Series LIMIT 3
Lightweight aluminium framework enables smooth and efficient movement. Cross-linked structure maintains alignment and stability during operation. Integrated drive system delivers dependable performance across wide entrances.
Aluminium Series LIMIT 4
Curved aluminium profiles provide enhanced strength with a refined appearance. Expandable framework minimizes the space required when fully retracted. Automated operation enables smooth access control across high-traffic entrances.
Aluminium Series LIMIT 5
High-grade aluminium construction provides durability and corrosion resistance. Reinforced expandable sections ensure structural stability during movement. Motorised operation delivers smooth, controlled, and reliable access.
Aluminium Series LIMIT 6
Durable aluminium framework supports reliable performance in demanding environments. High-visibility finish improves gate presence across controlled access points. Precision-engineered mechanism ensures stable expansion and retraction.
Stainless Steel Series LIMIT 8
SUS304 stainless-steel construction provides excellent strength and corrosion resistance. Precision-linked framework ensures smooth expansion and stable gate movement. Motorised operation supports dependable access across demanding environments.
Stainless Steel Series LIMIT 9
Premium SUS304 stainless steel delivers durability and a refined finish. Expandable lattice structure provides secure access with compact retraction. Integrated automation ensures smooth, efficient, and consistent operation.
Stainless Steel Series LIMIT 10
High-strength SUS304 stainless steel ensures reliable long-term performance. Reinforced expandable framework enhances stability across wide entrances. Advanced drive system enables smooth and controlled gate movement.
Interested in
Aluminium Series LIMIT 7?
Tell us your requirements and our team will send a tailored quote within 24 hours.
