Aluminium Series LIMIT 4
- Curved aluminium profiles provide enhanced strength with a refined appearance.
- Expandable framework minimizes the space required when fully retracted.
- Automated operation enables smooth access control across high-traffic entrances.
Aluminium Series LIMIT 4 - Images

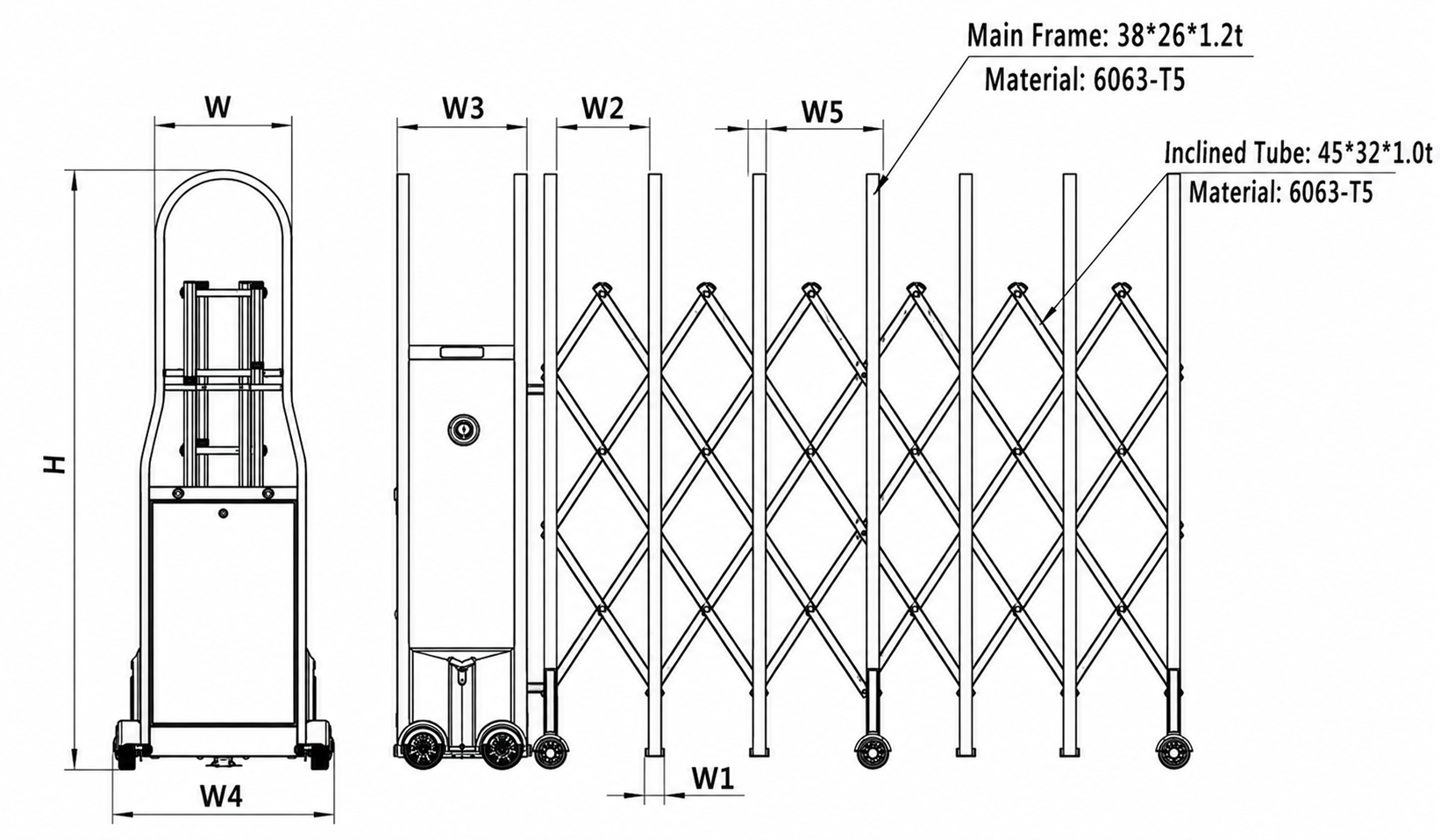

Technical Specifications
| Gate Frame | |
|---|---|
| H | 1.33M - 1.8M |
| W | 480mm |
| W1 | 058mm |
| W2 | 312mm |
| W3 | 378mm |
| W4 | 620mm |
| W5 | 038mm |
| Drive Unit | |
|---|---|
| Voltage | 220V ± 10% |
| Current | 2.5A |
| Power | 300W |
| Frequency | 50–60Hz |
| Insulation | E Class |
| Operating Temperature | -25°C / +70°C |
| Speed | 18 m/min |
