Stainless Steel Series LIMIT 10
- High-strength SUS304 stainless steel ensures reliable long-term performance.
- Reinforced expandable framework enhances stability across wide entrances.
- Advanced drive system enables smooth and controlled gate movement.
Stainless Steel Series LIMIT 10 - Images

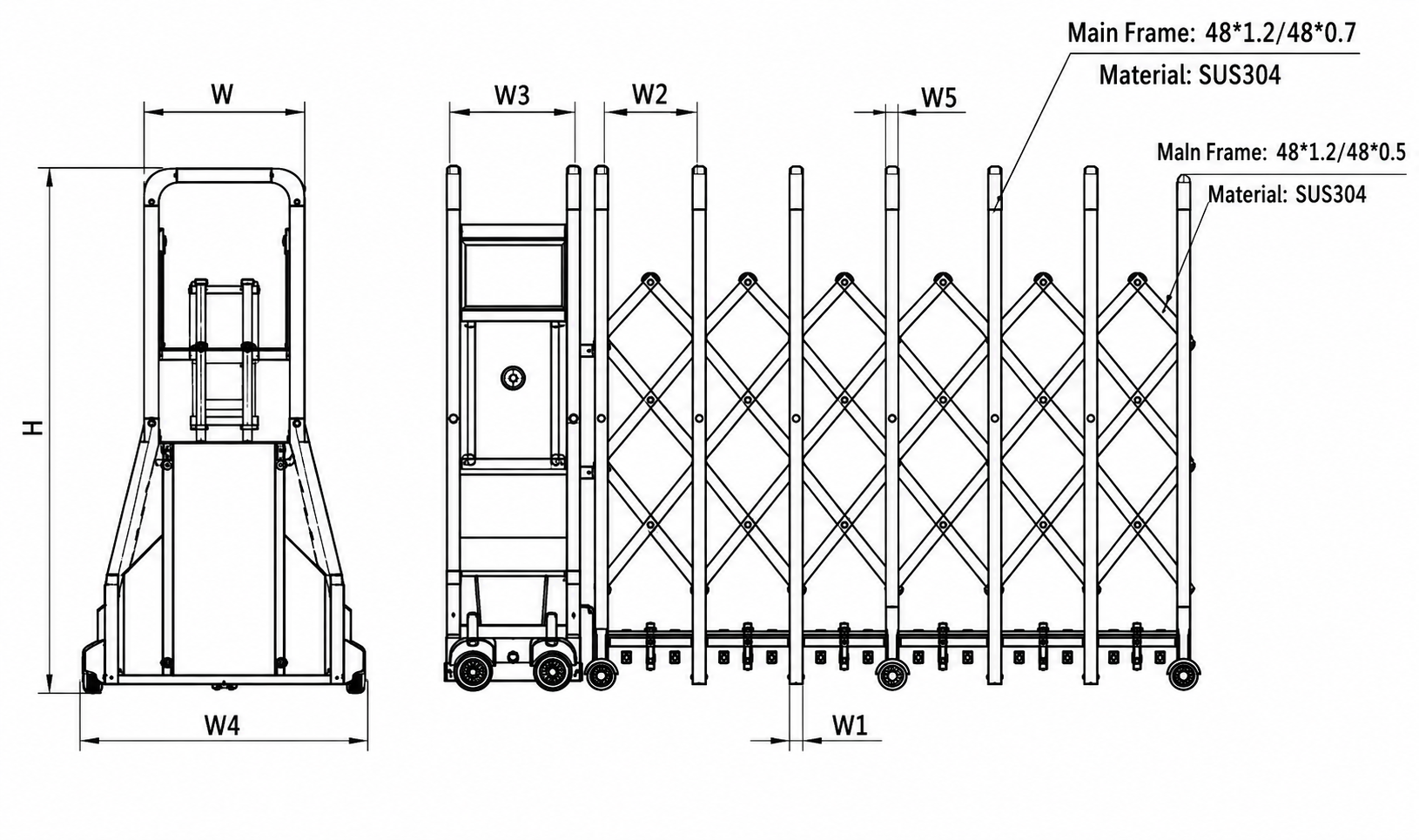

Technical Specifications
| Gate Frame | |
|---|---|
| H | 1.33M - 1.8M |
| W | 513mm |
| W1 | 068mm |
| W2 | 302mm |
| W3 | 302mm |
| W4 | 900mm |
| W5 | 048mm |
| Drive Unit | |
|---|---|
| Voltage | 220V ± 10% |
| Current | 2.5A |
| Power | 300W |
| Frequency | 50–60Hz |
| Insulation | E Class |
| Operating Temperature | -25°C / +70°C |
| Speed | 18 m/min |
